1-channel module only, dual-mode charge amplifier

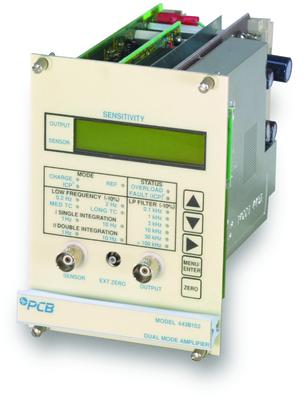

DUAL MODE CHARGE AMPLIFIER

Model 443B102

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

1-channel module only, dual-mode charge amplifier

For ICP® and charge output sensors, includes medium and long discharge time constant settings.
Part of 443B02 System.
  • Sensor Input Type(s): ICP®, Charge
  • Power Required: +15 at 230 mA

Specification Notes

[1] Can be increased using optional external 472B series charge attenuator.
[2] 4 Digit - Selectable
[3] Long time constant charge mode only.
[4] Must be used with PCB 440 series mainframe chassis with computer control (RS-232).
[5] Measured at gain of 1 mV/pC with 1 nF source capacitance.
[6] Measured at gain of 1,000 (60 dB), input referred.
[7] Measured at gain of 10V/pC (80 dB) with 1 nF source capacitance, input referred.
[8] Discrete mA settings (0, 2, 4, 8, 12, or 20).
[9] In medium time constant mode, output range is limitied to ±8V for certain gain settings
[10] Maximum number of 443B102 Dual Mode Signal Conditioners that can be powered by (1) 441A101 is (4). Other modules must be calculated not to exceed total power of 30 watts.
[11] Measured at gain of 1 with low noise ICP® simulator. (High pass filter = 0.2Hz)
[12] Depends on gain setting. LCD displays value when gain is entered.
[13] When in ICP® mode, long TC is true DC response.
[14] Double width unit.

English: SI:
Performance
Sensor Input Type(s) ICP®, Charge ICP®, Charge
Voltage Gain Increment 0.1-1000 0.1-1000
Accuracy(ICP®/ Voltage Input) ±0.5 % ±0.5 %
Accuracy(Charge Input) ±0.5 % ±0.5 %
Sensitivity (ICP®/Voltage) .001 to 9.999 mV/unit .001 to 9.999 mV/unit [2]
Sensitivity (Charge Input) 0.0001 to 10 V/pC 0.0001 to 10 V/pC
Input Range(maximum) (Charge Input) 100000 pC 100000 pC [1]
Low Frequency Response (-10 %) 2.0 Hz ±20 % 2.0 Hz ±20 %
Low Frequency Response (-10 %) 0.2 Hz ±20 % 0.2 Hz ±20 %
Low Frequency Response (10 %) (Velocity) 1.0 Hz ±5 % 1.0 Hz ±5 %
Low Frequency Response (10 %) (Velocity) 10 Hz ±5 % 10 Hz ±5 %
Low Frequency Response (10 %) (Displacement) 1.0 Hz ±5 % 1.0 Hz ±5 %
Low Frequency Response (10 %) (Displacement) 10 Hz ±5 % 10 Hz ±5 %
High Frequency Response (-10 %) 200 kHz ±5 % 200 kHz ±5 %
Electrical Filter Roll-off 80 dB/decade 80 dB/decade
Filter Type (4-pole Butterworth) Low Pass Low Pass
High Frequency Response (-10 %) 0.1 kHz ±5 % 0.1 kHz ±5 %
High Frequency Response (-10 %) 1.0 kHz ±5 % 1.0 kHz ±5 %
High Frequency Response (-10 %) 3.0 kHz ±5 % 3.0 kHz ±5 %
High Frequency Response (-10 %) 10 kHz ±5 % 10 kHz ±5 %
High Frequency Response (-10 %) 30 kHz ±5 % 30 kHz ±5 %
High Frequency Response (-10 %) 100 kHz ±5 % 100 kHz ±5 %
Fault/Bias Monitor LEDS Fault/Overload Fault/Overload
Drift <0.03 pC/s <0.03 pC/s [3]
Control Interface
Digital Control Interface RS-485 RS-485 [4]
Human Interface Keypad Keypad
Display 2 rows, 16 columns 2 rows, 16 columns
Digital Control: Data Rate 9600 bps 9600 bps
Digital Control: Start, Data, Stop, Parity 1, 8, 1, No 1, 8, 1, No
Environmental
Temperature Range (Operating) 32 to 120 °F 0 to +50 °C
Electrical
Power Required (VDC) +15 at 230 mA +15 at 230 mA
Power Required (VDC) -15 at 140 mA -15 at 140 mA
Power Required (Watts) 6.25 6.25 [10]
Power Required (VDC) +28 at 5 mA + Sensor Current +28 at 5 mA + Sensor Current
Excitation Voltage 24 ±1 VDC 24 ±1 VDC
DC Offset <50 mV <50 mV
Constant Current Excitation (to Sensor, Selectable) 0 to 20 mA 0 to 20 mA [8]
Output Voltage >±10 V >±10 V [9]
Output Impedance <1 Ohm <1 Ohm
Broadband Electrical Noise (1 Hz to 10 kHz) (ICP® INPUT) 9 µV -101 dB [6] [11]
Broadband Electrical Noise (2 to 22.4 kHz) (ICP® INPUT) <3 µV <-110 dB [6] [11]
Spectral Noise (1 Hz) 1 µV/√Hz -120 dB [11]
Spectral Noise (10 Hz) 0.22 µV/√Hz -133 dB [11]
Spectral Noise (100 Hz) 0.08 µV/√Hz -142 dB [11]
Spectral Noise (1 kHz) 0.08 µV/√Hz -142 dB [11]
Spectral Noise (10 kHz) 0.07 µV/√Hz -143 dB [11]
Broadband Electrical Noise (1 Hz to 10 kHz) (Charge Input) 9 µV -101 dB [5] [7]
Broadband Electrical Noise (2 Hz to 22.4 kHz) (Charge Input) <5 fC <5 fC [5] [7]
Spectral Noise (1 kHz) 0.8 µV/√Hz -122 dB [5]
Spectral Noise (10 kHz) 0.20 µV/√Hz -134 dB [5]
Spectral Noise (100 kHz) 0.08 µV/√Hz -142 dB [5]
Spectral Noise (1 kHz) 0.08 µV/√Hz -142 dB [5]
Spectral Noise (10 kHz) 0.07 µV/√Hz -143 dB [5]
Oscillator (pC RMS) 100±1% 100±1%
Oscillator (V RMS) 1±1% 1±1%
Oscillator (Hz) 159.2±1% 159.2±1%
Time Constant (Long TC Mode) Up to 100,000 Up to 100,000 [12] [13]
Time Constant (Med TC Mode) 10, 100, 1,000 ±20% 10, 100, 1,000 ±20%
Overload Threshold 10 V to ± 1 V 10 V to ± 1 V
Physical
Electrical Connector (Input, sensor) BNC BNC
Electrical Connector (Output) BNC BNC
Electrical Connector (Ext Zero) SMB SMB
Size - Height 5.05 x 3.6 in 128 x 92 mm [14]
Weight 1.45 lb 0.66 kg

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
070A02 Scope input adaptor (10-32 jack to BNC plug) 1
EE-79 1
