swivel style, easy-mount clip for 0.45 (11.4 mm) cube accelerometers

Easy Mount Swivel Clip

Model 080B176

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

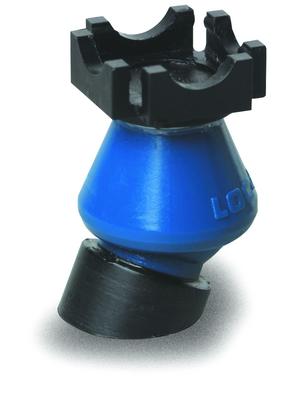

Swivel style, easy-mount clip for 0.45" (11.4 mm) cube accelerometers

  • Size: 0.5x1.22 in (12.7x31.0 mm)
  • Weight: 3.6 gm
  • Frequency Limit (±10%) - Grease Mount: 1 kHz Typical
  • Temperature Range (Continuous): -65 to +125°F (-54 to +52°C)
  • High Temperature Limit (Short Term Exposure): +175°F (+79°C)

  • Actual attainable frequency limits may be higher than specified, particularly for lower weight accelerometers, and may differ depending on axis of motion. An interface of silicone grease between clip and accelerometer aids in mechanical coupling to improve attainable frequency range.

      Specification Notes

      English: SI:

      * All specifications are at room temperature unless otherwise specified.
