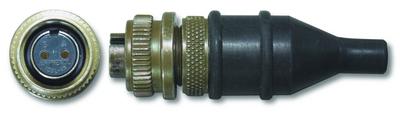

2-socket ms3106 connector with environmental boot (meets mil-c-5015)**self-assembly requires the use of 0.25” (6.35mm) cable**

Cable Connector

Model FV

  • IP

2-socket MS3106 connector with environmental boot (meets MIL-C-5015)**Self-assembly requires the use of 0.25” (6.35mm) cable**

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -65 to +325 °F (-55 to +163 °C)

Specification Notes

English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -65 to +325 °F -55 to +163 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.89 in 22.61 mm
Size - Length 2.71 in 68.83 mm
Weight 1.05 oz 29.70 gm

* All specifications are at room temperature unless otherwise specified.
