wide temperature -400 to +660f (-240 to + 349c) pressure sensor, 5000 psi, 1 pc/psi, 0.218 dia. ss diaphragm, accel. comp., 5-point cal ranges at 5kpsi, 500psi and 100psi

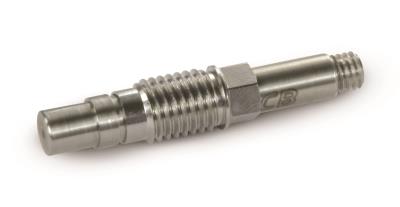

Charge Output Pressure Sensor

Model 112B05

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
8 Lead Time for 1-5 is 14 Wks.
Lead Time for 6-10 is 16 Wks.
  • CE
  • IP

Wide temperature -400 to +660F (-240 to + 349C) pressure sensor, 5000 psi, 1 pC/psi, 0.218" dia. SS diaphragm, accel. comp., 5-point cal ranges at 5kpsi, 500psi and 100psi

  • Measurement Range: 5000 psi (34475 kPa)
  • Sensing Element: Quartz
  • Temperature Range: -400 to +500 °F (-240 to +260 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.21 oz (6.0 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) 1.1 pC/psi .16 pC/kPa
Sensitivity (±15 %) 1.1 pC/psi .16 pC/kPa
Measurement Range 5000 psi 34475 kPa
Maximum Pressure (Total) 10000 psi 68950 kPa
Resonant Frequency ≥200 kHz ≥200 kHz
Rise Time (Reflected) ≤2.0 µ sec ≤2.0 µ sec
Non-Linearity ≤1.0 % FS ≤1.0 % FS [1]
Environmental
Acceleration Sensitivity 0.003 psi/g 0.0021 kPa/(m/s²) [2]
Temperature Range (Operating) -400 to +500 °F -240 to +260 °C
Temperature Response See Graph See Graph [2]
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 5000 g pk 49000 m/s² pk
Maximum Shock 10000 g pk 98000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Negative Negative
Capacitance 24 pF 24 pF [2]
Insulation Resistance (500°F/260°C) ≥1000000000 Ohm ≥1000000000 Ohm
Insulation Resistance (at room temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Insulation Resistance (500°F/260°C) ≥1000000000 Ohm ≥1000000000 Ohm
Physical
Sensing Element Quartz Quartz
Sensing Geometry Compression Compression
Housing Material 17-4 Stainless Steel 17-4 Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.21 oz 6.0 gm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
PCS-10 Single point sensitivity coefficient at sensor maximum operating temperature 0
PCS-1BA 0
060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, SS (for Series 111, 112 & 113) 1
060A05 Clamp nut, M7 x 0.75-6G thd (for Series M111, M112 & M113) 1
065A05 Seal sleeve, sensor recess mount, 0.248" OD x 0.221" ID x 0.240" thk, 17-4 SS (for Series 111A, 112A & 113A) 1
065A29 Seal, 0.250" OD x 0.218" ID x 0.015" thk, stainless steel (minimum order 5 each) 2
065A02 Seal ring, sensor flush mount, 0.248" OD x 0.219" ID x 0.015" thk, brass (for Series 111A, 112A & 113A) 3

Optional Versions

(P) Positive Output Polarity

English SI
Output Polarity Positive
Output Polarity Positive
Output Polarity Positive
(W) Water Resistant Cable
Accessories:
Supplied 060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, stainless steel 1
(WM) Water Resistant Cable
Accessories:
Supplied 060A05 Clamp nut M7 x 0.75-6g thd 1
