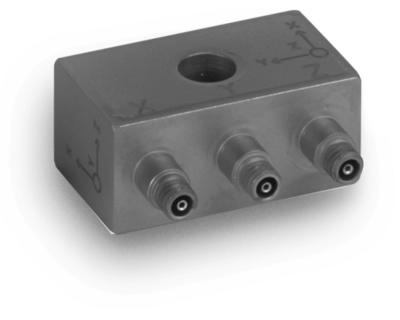

TRIAXIAL CHARGE OUTPUT ACCELEROMETER

Model 356A70

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-10 is 10 Wks.
Lead Time for 11-20 is 12 Wks.
  • CE
  • IP

Platinum Stock Products; Triaxial, miniature (8 gm), charge output accel., 2.7 pC/g, 5k Hz, (3) 5-44 conn.

  • Sensitivity: (±30%)2.7 pC/g (0.28 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (+5%)5 kHz (5 kHz)
  • Temperature Range: -95 to +490 °F (-70 to +254 °C)
  • Electrical Connector: 5-44 Coaxial (5-44 Coaxial)
  • Weight: 0.28 oz (7.9 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±30 %) 2.7 pC/g 0.28 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (+5 %) 5 kHz 5 kHz [2]
Frequency Range (+10 %) 7 kHz 7 kHz [2]
Resonant Frequency ≥35 kHz ≥35 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range -95 to +490 °F -70 to +254 °C
Temperature Response See Graph See Graph [3]
Electrical
Capacitance 260 pF 260 pF [3]
Insulation Resistance (at 70° F [21° C]) >1000000000000 Ohm >1000000000000 Ohm
Insulation Resistance (at 490° F [254° C]) >100000000 Ohm >100000000 Ohm [3]
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Length 0.73 in 18.5 mm
Size - Width 0.90 in 22.9 mm
Size - Height 0.40 in 10.2 mm
Weight 0.28 oz 7.9 gm [3]
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Mounting Through Hole Through Hole
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
039A23 Allen wrench, 5/32" hex head (for use with 10-32 thd cap screws) 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081A46 Socket head cap screw, 10-32 x 0.563" long 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M039A23 Allen wrench, 4mm hex 1
Supplied M081A46 Mounting stud, M5 X 0.80 X 14mm 1
