shock, ceramic-shear, icp® accel., 1 mv/g, 5k g range, filtered, 10-32 top conn.

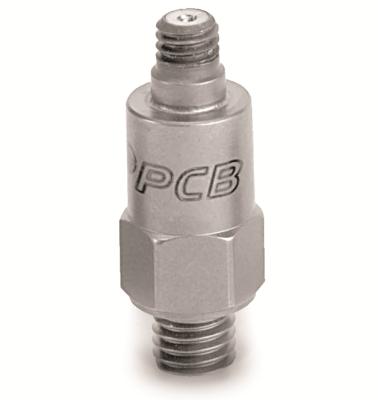

ICP® Shock Accelerometer

Model 350C04

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Shock, ceramic-shear, ICP® accel., 1 mV/g, 5k g range, filtered, 10-32 top conn.

  • Sensitivity: (±30%)1.0 mV/g (0.10 mV/(m/s²))
  • Measurement Range: ±5000 g pk (±49000 m/s² pk)
  • Frequency Range: (±1dB)0.4 to 10000 Hz
  • Electrical Filter Corner Frequency: (-3dB)17 kHz
  • Mechanical Filter Resonant Frequency: 35 kHz
  • Weight: 0.19 oz (5.4 gm)

Specification Notes

[1] Typical.
[2] Typical corner frequency for coupled electrical and mechanical filters.
[3] Electrical filter is a second order filter.
[4] Amplitude at resonance is +9 dB.
[1] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±30 %) 1.0 mV/g 0.10 mV/(m/s²)
Measurement Range ±5000 g pk ±49000 m/s² pk
Frequency Range (±1 dB) 0.4 to 10000 Hz 0.4 to 10000 Hz
Frequency Range (-3 dB) 0.2 to 25000 Hz 0.2 to 25000 Hz [2]
Electrical Filter Corner Frequency (-3 dB) 17 kHz 17 kHz [1] [3]
Mechanical Filter Resonant Frequency 35 kHz 35 kHz [1] [4]
Resonant Frequency ≥100 kHz ≥100 kHz
Broadband Resolution (1) 0.02 g rms 0.20 m/s² rms [1]
Non-Linearity (per 1000 g (9810 m/s2)) ≤2.0 % ≤2.0 %
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) ±50000 g pk ±490000 m/s² pk
Temperature Range (Operating) 0 to +150 °F -18 to +66 °C
Temperature Range (Storage) -40 to +200 °F -40 to +93 °C
Temperature Response See Graph %/°F See Graph %/°F
Base Strain Sensitivity 0.002 g/µε 0.02 (m/s²)/µε [1]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant 1.0 to 2.0 sec 1.0 to 2.0 sec [1]
Settling Time (within 10% of bias) <10 sec <10 sec
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Hex 0.375 in 9.5 mm
Size - Height 1.15 in 29.2 mm
Weight 0.19 oz 5.4 gm [1]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Top Top
Mounting Thread 1/4-28 Male 1/4-28 Male

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ACS-14 High G accel. verification using Hopkinson bar to max g range, (NIST traceable). 1
ACS-22 **OBSOLETE see ACS-22/ACS-14** Amplitude response cal for shock accel, 100 Hz to upper 1 dB freq (max 15 kHz) 1

Optional Versions

(M) Metric Mount

English SI
Mounting Thread M6 x 0.75 Male
