impact force sensor, 20k lb comp., 18 pc/lb, charge output

Force Sensor, Charge Output

Model 210B20

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

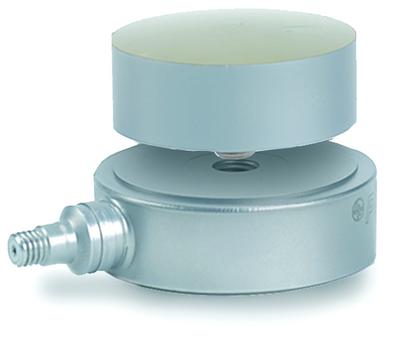

Impact force sensor, 20k lb comp., 18 pC/lb, charge output

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 40000 Hz
  • Temperature Range: -300 to +400 °F (-184 to +204 °C)
  • Mounting Thread: 1/4-28 Female (1/4-28 Female)
  • Weight: 3.1 oz (88 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤20000 lb ≤88.96 kN
Maximum Static Force (Compression) 30000 lb 133.45 kN
Upper Frequency Limit 40000 Hz 40000 Hz [2] [3]
Non-Linearity ≤2 % FS ≤2 % FS [1]
Environmental
Temperature Range -300 to +400 °F -184 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance ≥90 pF ≥90 pF [4]
Insulation Resistance ≥1E12 ≥1E12
Output Polarity Negative Negative
Physical
Stiffness 63 lb/µin 11 kN/µm [4]
Size - Diameter 1.5 in 38.1 mm
Size - Height 0.5 in 12.7 mm
Weight 3.1 oz 88 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 1/4-28 Female 1/4-28 Female

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A81 Thread lock adhesive (for Series 200) 1
081A06 Mounting stud, 1/4-28 to 1/4-28 thds x 0.365", no shoulder 1
081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 1
084B23 Impact cap, convex (for Model 200C20) 1

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connector Molded Integral Cable
Electrical Connection Position Side
