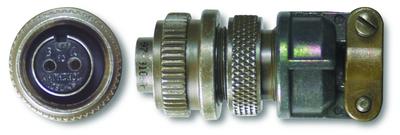

2-socket ms3106 connector w/strain relief (meets mil-c-5015)

Cable Connector

Model AP

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
38 Lead Time for 1-25 is 14 Dys.
  • IP

2-socket MS3106 connector w/strain relief (meets MIL-C-5015)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -320 to +257 °F (-196 to +125 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Clamp Clamp
Environmental
Temperature Range -320 to +257 °F -196 to +125 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.87 in 22 mm
Size - Length 1.78 in 45.21 mm
Weight 1.19 oz 33.87 gm

* All specifications are at room temperature unless otherwise specified.
