re-usable icp® piezoelectric strain sensor, titanium hsg, 10-ft of 030 cable, terminating to 10-32 coax plug

Strain Sensor, ICP®, Uniaxial

Model 740B02

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
1 Lead Time for 1-10 is 8 Wks.
Lead Time for 11-20 is 10 Wks.
  • IP

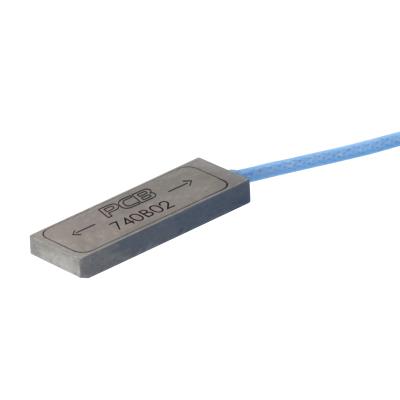

Re-usable ICP® piezoelectric strain sensor, titanium hsg, 10-ft of 030 cable, terminating to 10-32 coax plug

This high-resolution dynamic alternative to bond foil strain gauges uses a quartz sensing element in a durable, titanium housing. It has 0.0006 microstrain resolution, 5 volt output, 100k Hz frequency response and 0.5 gram mass for lightweight test articles. The reusable sensor comes with a calibration certificate, attaches to the test specimen in 60 seconds and is removed in 10 seconds.
  • Measurement Range: 100 pk µε
  • Sensitivity: (±20%)50 mV/µε
  • Broadband Resolution: 0.6 nε

Additional configurations:

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Based on cable drive of 100 ft at 30 pF/ft 20 mA excitation.
[4] Calibrated on a steel bar at 100 με
[2] Typical.
[5] Measured perpendicular to sensing axis.
[2] Typical.

English: SI:
Performance
Sensitivity (±20 %) 50 mV/µε 50 mV/µε [4]
Measurement Range 100 pk µε 100 pk µε
Frequency Range 0.5 to 100000 Hz 0.5 to 100000 Hz [3]
Broadband Resolution (1) 0.6 nε 0.6 nε [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [2]
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range -65 to +250 °F -53 to +121 °C
Acceleration Sensitivity 0.001 µε/g 0.0001 µε/(m/s²) [2] [5]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant 1 to 3 sec 1 to 3 sec
Spectral Noise (1 Hz) 210 pε/√Hz 210 pε/√Hz [2]
Spectral Noise (10 Hz) 70 pε/√Hz 70 pε/√Hz [2]
Spectral Noise (100 Hz) 20 pε/√Hz 20 pε/√Hz [2]
Spectral Noise (1 kHz) 5 pε/√Hz 5 pε/√Hz [2]
Spectral Noise (10 kHz) 1 pε/√Hz 1 pε/√Hz [2]
Physical
Sensing Element Quartz Quartz
Housing Material Titanium Titanium
Sealing Epoxy Epoxy
Size - Width 0.2 in 5.1 mm
Size - Length 0.6 in 15.2 mm
Size - Height 0.07 in 1.8 mm
Weight 0.02 oz 0.5 gm [2]
Electrical Connector 10-32- Coaxial Plug 10-32 Coaxial Plug
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
Cable Length 10 ft 3 m
Cable Type 030 Coaxial 030 Coaxial
