4-socket 1/4-28 plug, 200c rated, low outgassing (for use with dc & triaxial sensors) **requires special tooling for assembly – no sales except pcb locations that have the tooling and procedures.**

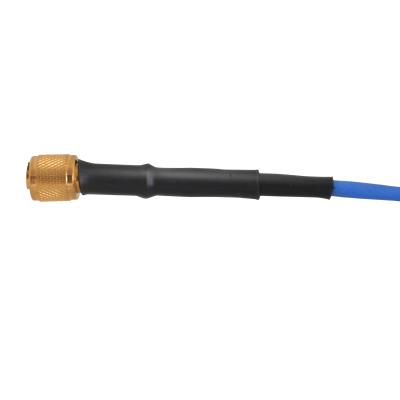

200C 4-SOCKET 1/4-28 PLUG

Model RJ

  • IP

4-socket 1/4-28 plug, 200C rated, low outgassing (for use with DC & triaxial sensors) **Requires special tooling for assembly – No sales except PCB locations that have the tooling and procedures.**

  • Connector Style: Multi-conductor
  • Connection Type: 4-socket
  • Connection Type: Plug with Female Contact
  • Coupling Thread: 1/4-28 female
  • Temperature Range: -76 to 392 °F (-60 to 200 °C)

Specification Notes

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 4-socket 4-socket
Connection Type Plug with Female Contact Plug with Female Contact
Coupling Method Threaded Threaded
Coupling Thread 1/4-28 female 1/4-28 female
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -76 to 392 °F -60 to 200 °C
Physical
ROHS Compliant Yes Yes
Housing Material Brass Brass
Size - OD .30 in 7.6 mm
Size - Length 1.0 in 25 mm
Weight .11 oz 3.0 gm

* All specifications are at room temperature unless otherwise specified.
