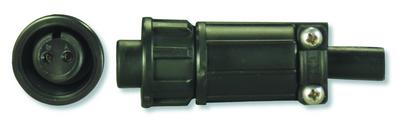

field installable 2-socket molded composite connector w/strain relief (mil-c-5015 compatible)

Cable Connector

Model CF

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
89 Lead Time for 1-25 is 14 Dys.
Lead Time for 26-50 is 14 Dys.
  • IP

Field installable 2-socket molded composite connector w/strain relief (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +250 °F (-55 to +121 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Clamp Clamp
Environmental
Temperature Range -67 to +250 °F -55 to +121 °C
Physical
Size - OD 0.83 in 21.08 mm
Size - Length 2.44 in 61.98 mm
Weight 0.44 oz 12.40 gm

* All specifications are at room temperature unless otherwise specified.
