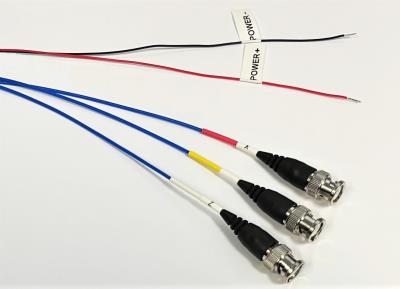

quintuple splice assembly of (3) bnc plugs and (2) pigtails leads wired/labeled (power+, power-) for 3713 series, case isolation not maintained

QUINTUPLE SPLICE, BNC PLUGS & PIGTAILS

Model PG

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
0 Call for Lead Time
  • IP

Quintuple splice assembly of (3) BNC plugs and (2) pigtails leads wired/labeled (Power+, Power-) for 3713 Series, case isolation not maintained

  • Connector Style: Pigtail
  • Connector Style: BNC
  • Connection Type: Plug (male pin)
  • Temperature Range: -67 to +230 °F (-55 to +110 °C)

Specification Notes

English: SI:
Performance
Connector Style Pigtail Pigtail
Connector Style BNC BNC
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Bayonet Bayonet
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -67 to +230 °F -55 to +110 °C
Physical
Electrical Connections "See Outline Drawing" "See Outline Drawing"
ROHS Compliant Yes Yes

* All specifications are at room temperature unless otherwise specified.
