din rail mount controller for use with universal inputs, 2 form a relays

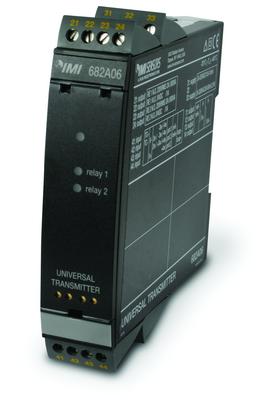

DIN RAIL MOUNT CONTROLLER

Model 682A06

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
27 Lead Time for 1-5 is 3 Wks.
  • CE
  • IP

DIN rail mount controller for use with universal inputs, 2 form A relays

Fully programmable universal transmitter with current output, voltage output, and two relay outputs. Provides loop power for 2-wire, 4-20 mA sensors and transmitters, and accepts mA, VDC, RTD, TC, linear resistance, and potentiometer inputs. Fully programmable via detachable display (sold separately- Model 070B80 ), and operates from 19.2 to 300 VDC, or 21.5 to 253 VAC power.
  • Supply Voltage: 19.2 to 300 VDC

Specification Notes

[1] See appropriate Declaration of Conformance for details

English: SI:
Environmental
Temperature Range (Operating) -4 to 140 °F -20 to 60 °C
Electrical
Supply Voltage 19.2 to 300 VDC 19.2 to 300 VDC
Current Consumption ≤2.5 W ≤2.5 W
Physical
Size - Width 0.93 in 23.5 mm
Size - Height 4.29 in 109 mm
Size - Depth 4.09 in 104 mm
Weight 6.00 oz 170 gm

* All specifications are at room temperature unless otherwise specified.
