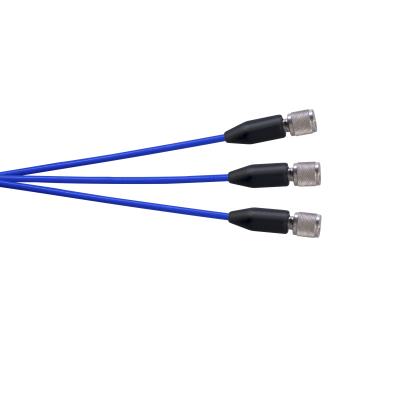

triple splice assembly with (3) 1-ft coaxial cables each with a 10-32 plug (eb connector), 4-conductor shield grounded

TRIPLE SPLICE, 10-32 PLUG W/ SHIELD GND

Model NV

Add to Quote
  • IP

Triple splice assembly with (3) 1-ft coaxial cables each with a 10-32 plug (EB connector), 4-conductor shield grounded

Cannot be sold as a standalone item.


See Model JY for a non-grounded shield triple splice assembly.


Protective Cap: 085A18


  • Connector Style: Triple Splice
  • Connector Style: Coaxial
  • Connection Type: Plug (male pin)
  • Coupling Thread: 10-32 female
  • Temperature Range: -67 to 230 °F (-55 to 110 °C)

Specification Notes

English: SI:
Performance
Connector Style Triple Splice Triple Splice
Connector Style Coaxial Coaxial
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 10-32 female 10-32 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to 230 °F -55 to 110 °C
Physical
Electrical Connections (Red) X axis X axis
Electrical Connections (Yellow) Y axis Y axis
Electrical Connections (White) Z axis Z axis
Electrical Connections (Black) Ground Ground
Electrical Connections (Shield) Ground/Shield Ground/Shield
ROHS Compliant Yes Yes
Size - Length 12 in 30.5 cm

* All specifications are at room temperature unless otherwise specified.
