triaxial icp® accelerometer, 50 mv/g, 100 g, 1/4-28 4-pin connector, adhesive mount, teds 1.0, ground isolated

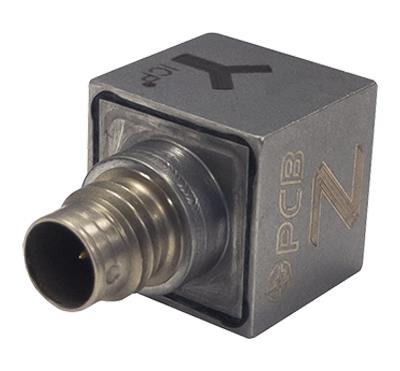

Triaxial ICP® Accelerometer

Model J356A44

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-5 is 15 Dys.
Lead Time for 6-10 is 20 Dys.
  • CE
  • IP

Triaxial ICP® accelerometer, 50 mV/g, 100 g, 1/4-28 4-pin connector, Adhesive mount, TEDS 1.0, Ground isolated

  • Sensitivity: (±10%)50 mV/g (5.1 mV/(m/s²))
  • Measurement Range: ±100 g pk (±981 m/s² pk)
  • Frequency Range: (+/-10%)0.4 to 10000 Hz
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 50 mV/g 5.1 mV/(m/s²)
Measurement Range ±100 g pk ±981 m/s² pk
Frequency Range (+/-5 %) 0.7 to 7000 Hz 0.7 to 7000 Hz
Frequency Range (+/-10 %) 0.4 to 10000 Hz 0.4 to 10000 Hz
Resonant Frequency ≥30 kHz ≥30 kHz
Broadband Resolution (1) 0.0006 g rms .006 m/s² rms [2]
Non-Linearity 1 % 1 % [1]
Transverse Sensitivity ≤6 % ≤6 %
TEDS Compliant (Per IEEE 1451.4) Yes Yes
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to 200 °F -54 to 93 °C
Temperature Response See Graph See Graph [2]
Base Strain Sensitivity .001 g/µε .01 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.8 to 2.4 sec 0.8 to 2.4 sec
Settling Time (within 10% of bias) ≤5 sec ≤5 sec
Spectral Noise (1 Hz) 200 µg/√Hz 1962 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 45 µg/√Hz 441 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 20 µg/√Hz 196 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 6 µg/√Hz 58.9 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.40 in 10.2 mm
Size - Length 0.75 in 19.1 mm
Size - Width 0.40 in 10.2 mm
Weight 0.15 oz 4.2 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions


(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range ((Operating) ) -65 to 325 °F
Spectral Noise ((100 Hz) ) 30 µg/√Hz 294 (µm/s²)/√Hz
Frequency Range ((+/-5) %) 12 to 7000 Hz
Broadband Resolution 0.001 g rms
Spectral Noise ((10 Hz) ) 200 µg/√Hz 1,962 (µm/s²)/√Hz
Spectral Noise ((1 kHz) ) 10 µg/√Hz 98 (µm/s²)/√Hz
Frequency Range ((+/-10) %) 9 to 10000 Hz
Discharge Time Constant 0.04 to 0.2 sec
Output Bias Voltage 12 to 16 VDC

(J) Ground Isolated

English SI
Weight 0.20 oz 5.7 gm
Size - Height 0.47 in 11.8 mm
Electrical Isolation ≥100000000 Ohm
Size - Width 0.47 in 11.8 mm
Size - Length 0.78 in 19.8 mm
