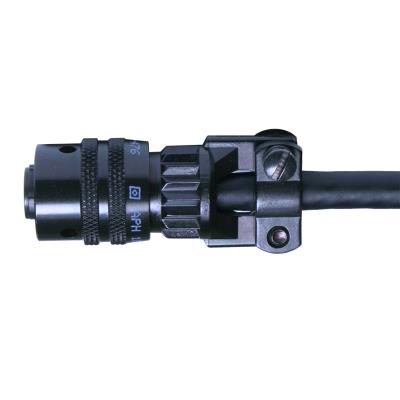

4-socket ms3116 connector w/strain relief (meets mil-c-26482)

AN - 4 SOCKET PT06E8-45-476

Model AN

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

4-socket MS3116 connector w/strain relief (meets MIL-C-26482)

  • Connector Style: PT06E8-45-476
  • Connector Style: Multi-conductor
  • Connection Type: 4-socket
  • Temperature Range: -67 to +257 °F (-55 to +125 °C)

Specification Notes


English: SI:
Performance
Connector Style PT06E8-45-476 PT06E8-45-476
Connector Style Multi-conductor Multi-conductor
Connection Type 4-socket 4-socket
Coupling Method Bayonet Bayonet
Strain Relief Clamp Clamp
Environmental
Temperature Range -67 to +257 °F -55 to +125 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.71 in 18.03 mm
Size - Length 1.76 in 44-96 mm
Size - Width 0.75 in 19.05 mm
Weight 0.79 oz 22.34 gm

* All specifications are at room temperature unless otherwise specified.
