patented phantom powered 48v, 24v or 12v, 377c01 microphone and 426a14 preamplifier system

PHANTOM POWER MICROPHONE SYSTEM

Model 376A31

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

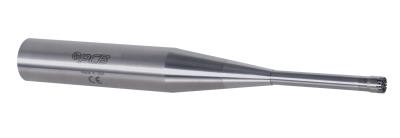

Patented phantom powered 48V, 24V or 12V, 377C01 microphone and 426A14 preamplifier system

  • Nominal Microphone Diameter: 1/4"
  • Frequency Response Characteristic: Free-Field
  • Frequency Range: (+2 / -3dB)4 to 100000 Hz
  • Dynamic Range: 165 dB re 20 µPa

Specification Notes


[1] Typical.
[2] re 250 Hz
[3] A-Weighted inherent noise is specified from 20 Hz - 20 kHz.
[1] Typical.
[2] re 250 Hz
[1] Typical.
[4] Prepolarized
[1] Typical.
[5] See PCB Declaration of Conformance PS147 and PS167 for details.

English: SI:
Performance
Nominal Microphone Diameter 1/4" 1/4"
Frequency Response Characteristic (at 0° incidence) Free-Field Free-Field
Sensitivity (±3 dB) -54 dB re 1 V/Pa -54 dB re 1 V/Pa [2]
Sensitivity 2.0 mV/Pa 2.0 mV/Pa [2]
Frequency Range (+2 / -3 dB) 4 to 100000 Hz 4 to 100000 Hz
Frequency Range (±2 dB) 5 to 80000 Hz 5 to 80000 Hz
Frequency Range (±1 dB) 7 to 12500 Hz 7 to 12500 Hz
Lower Limiting Frequency (3) 0.75 to 4.0 Hz 0.75 to 4.0 Hz
Inherent Noise 40 dB(A) re 20 µPa 40 dB(A) re 20 µPa [1] [3]
Dynamic Range (3% Distortion Limit) 165 dB re 20 µPa 165 dB re 20 µPa [1]
Environmental
Temperature Range (Operating) -40 to +149 °F -40 to +65 °C
Temperature Coefficient of Sensitivity (+14 to +149°F (-10 to 65°C)) 0.003 dB/°F 0.006 dB/°C [1] [2]
Static Pressure Coefficient -0.009 dB/kPa -0.009 dB/kPa [1] [2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing) ±0.001 dB/%RH ±0.001 dB/%RH [2]
Influence of Axial Vibration (0.1g (1 m/s²)) 60 dB re 20 µPa 60 dB re 20 µPa [1]
Electrical
Polarization Voltage 0 V 0 V [4]
Current Draw 6.5 6.5 [1]
Maximum Output Voltage ±10 Vpk ±10 Vpk
Output Impedance <50 Ohm <50 Ohm
Physical
Housing Material Stainless Alloy Stainless Alloy
Venting Rear Rear
Electrical Connector 3-Pin XLR 3-Pin XLR
Mounting Thread (Grid) 0.25 - 60 UNS 0.25 - 60 UNS
Size - Diameter 0.79 in 20.1 mm
Size - Height (with grid) 6.85 in 174.0 mm
Weight 4.96 oz 140.7 gm [1]

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
079A49 Phantom powered microphone holder 20mm dia with 5/8-27 1
64443-01 1
64444-01 1
ACS-42 Calibration of a Series 377 (Type 1) microphone & preamp, as mated pair 1
