uht-12™, charge output accel, high temp to +900 f, 0.53 pc/g, 5000 g, to 6k hz, 10-32 side conn, 5-40 thread mount, case isolated

ACCELEROMETER

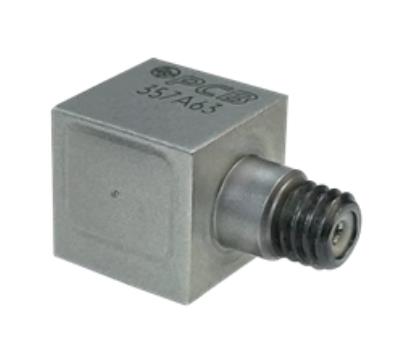

Model 357A63

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

UHT-12™, Charge output accel, high temp to +900 F, 0.53 pC/g, 5000 g, to 6k Hz, 10-32 side conn, 5-40 thread mount, case isolated

Sensitivity: (±10%).53 pC/g (.054 pC/(m/s²))
Measurement Range: ±5000 g pk (±49050 m/s² pk)
Frequency Range: (±10%)10 kHz (10 kHz)
Weight: .31 oz (8.7 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Low frequency response is determined by external signal conditioner
[2] Typical.
[4] See PCB Declaration of Conformance PS081 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	.53 pC/g	.054 pC/(m/s²)
Measurement Range	±5000 g pk	±49050 m/s² pk
Frequency Range (±10 %)	10 kHz	10 kHz	[3]
Resonant Frequency	45 kHz	45 kHz	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤3 %	≤3 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49050 m/s² pk
Temperature Range	-65 to +900 °F	-54 to +482 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[2]
Base Strain Sensitivity	.003 g/µε	.02 (m/s²)/µε	[2]
Radiation Exposure Limit (Integrated Neutron Flux)	1 E10 N/cm²	1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux)	1 E8 rad	1 E8 rad
Electrical
Capacitance	60 pF	60 pF	[2]
Insulation Resistance (at 70°F [21°C])	>1 GOhm	>1 GOhm
Insulation Resistance (at 900° F [482°C])	>1 MOhm	>1 MOhm
Output Polarity	Positive	Positive
Electrical Isolation	Signal Isolated from Case	Signal Isolated from Case
Physical
Sensing Element	UHT-12™	UHT-12™
Sensing Geometry	Shear	Shear
Housing Material	Inconel	Inconel
Sealing	Hermetic	Hermetic
Size - Height	.4 in	10.2 mm
Size - Length	.4 in	10.2 mm
Size - Width	.4 in	10.2 mm
Weight	.31 oz	8.7 gm	[2]
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Side	Side
Mounting Thread	5-40 Female	5-40 Female
