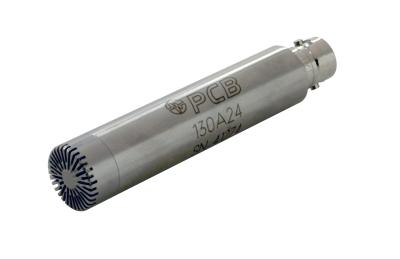

ICP® Electret Array Microphone

Model 130A24

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-10 is 14 Dys.
Lead Time for 11-20 is 3 Wks.
  • CE
  • IP

ICP® Water Resistant Array Microphone and preamplifier

  • Nominal Microphone Diameter: 1/2"
  • Sensitivity: 10 mV/Pa
  • Inherent Noise: <30 dB(A) re 20 µPa

Specification Notes


[1] Typical.
[2] TEDS Capable Digital Memory and Communication, compliant with IEEE 1451.4
[3] Max without clipping.
[4] Tested IAW IEC60529 with additional water ingress protection for the BNC connector
[1] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Nominal Microphone Diameter 1/2" 1/2"
Frequency Response Characteristic (at 0° incidence) Free-Field Free-Field
Frequency Response (±3 dB) 20 to 16000 Hz 20 to 16000 Hz
Phase Match (50 Hz to 100 Hz) ±5 ° ±5 °
Phase Match (100 Hz to 3 kHz) ±3 ° ±3 °
Phase Match (3 kHz to 5 kHz) ±5 ° ±5 °
Phase Match (5 kHz to 10 kHz) ±10 ° ±10 °
Sensitivity (@ 250 Hz) 10 mV/Pa 10 mV/Pa
Sensitivity (±3 dB) (@ 250 Hz) -40 dB re 1 V/Pa -40 dB re 1 V/Pa
Inherent Noise (A Weighted) <30 dB(A) re 20 µPa <30 dB(A) re 20 µPa
Dynamic Range (High) 150 dB re 20 µPa 150 dB re 20 µPa [1] [3]
Dynamic Range (3% Distortion Limit) >143 dB re 20 µPa >143 dB re 20 µPa
TEDS Compliant Yes Yes [2]
Standards Designation (IEC 60529) IP55 IP55 [4]
Environmental
Temperature Range (Operating) +14 to +122 °F -10 to +50 °C
Temperature Effect on Output (-10 to +50 °C) <0.7 dB <0.7 dB [1]
Influence of Axial Vibration ((1 m/s²)) 60 dB re 20 µPa 60 dB re 20 µPa [1]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Bias Voltage 9 to 14 VDC 9 to 14 VDC
Output Impedance <52 Ohm <52 Ohm
Physical
Housing Material Stainless Steel Stainless Steel
Electrical Connector (Output) BNC Jack BNC Jack
Size - Diameter (overall) .52 in 13.2 mm
Size - Length (overall) 2.75 in 69.9 mm
Weight 1.8 oz 51.1 gm [1]

* All specifications are at room temperature unless otherwise specified.

Accessories


Optional
079A46 5 pack of water resistant pads for the 130A24 array microphone 1
Supplied
100-15124-40 1
ACS-21 Calibration 130 Series microphone; microphone/preamplifier together 1
