quartz shear triaxial icp® accelerometer, 10 mv/g, 2 to 5k hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient ltc, +325f temp rating, teds 1.0

TRIAXIAL ICP® ACCELEROMETER TEDS1.0

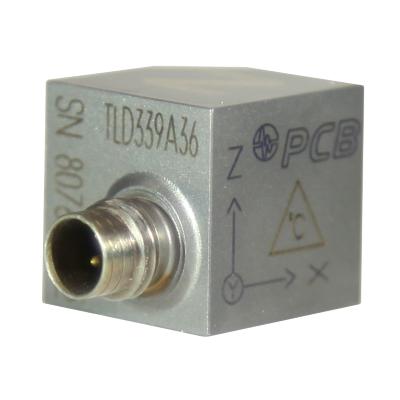

Model TLD339A36

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Lead Time for 1-5 is 8 Wks. Lead Time for 6-10 is 10 Wks. Lead Time for 11-20 is 12 Wks.
	Lead Time for 11-20 is 12 Wks.

Quartz shear triaxial ICP® accelerometer, 10 mV/g, 2 to 5k Hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient LTC, +325F temp rating, TEDS 1.0

Electrical Filter Corner Frequency: >13 kHz

Sensitivity: (±10%)10 mV/g (1.0 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	10 mV/g	1.0 mV/(m/s²)
Measurement Range	±500 g pk	±4900 m/s² pk
Frequency Range (±5 %)	2 to 5000 Hz	2 to 5000 Hz
Frequency Range (±10 %)	1 to 8000 Hz	1 to 8000 Hz
Resonant Frequency	≥35 kHz	≥35 kHz
Filter Type (single pole)	Low Pass	Low Pass
Electrical Filter Roll-off	6 dB/octave	6 dB/octave
Electrical Filter Corner Frequency	>13 kHz	>13 kHz
Broadband Resolution (1)	.003 g rms	.029 m/sec²rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
TEDS Compliant (Per IEEE 1451.4)	Yes	Yes
Environmental
Overload Limit (Shock)	±5000 g pk	±49000 m/s² pk
Temperature Range (Operating)	-65 to 325 °F	-54 to 163 °C
Temperature Response	See Graph	See Graph	[2]
Temperature Coefficient of Sensitivity	-.03 %/°F	-.06 %/°C	[2]
Base Strain Sensitivity	.001 g/µε	.0098 (m/s²)/µε	[2]
Electrical
Excitation Voltage	21 to 30 VDC	21 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	8 to 14 VDC	8 to 14 VDC
Discharge Time Constant	.3 to 1.1 sec	.3 to 1.1 sec
Settling Time (within 10% of bias)	<5 sec	<5 sec
Spectral Noise (1 Hz)	2080 µg/√Hz	20405 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	250 µg/√Hz	2453 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	50 µg/√Hz	491 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	20 µg/√Hz	196 (µm/sec²)/√Hz	[2]
Spectral Noise (10 kHz)	19 µg/√Hz	186 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Quartz	Quartz
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	0.55 in	14.0 mm
Size - Length	0.80 in	20.3 mm
Size - Width	0.55 in	14.0 mm
Weight	0.37 oz	10.5 gm	[2]
Electrical Connector	1/4-28 4-Pin	1/4-28 4-Pin
Electrical Connection Position	Side	Side
Mounting Thread	5-40 Female	5-40 Female

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
080A145	Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/isolating hardcoat finish	1
080A90	Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces)	1
081A27	Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
M081A27	Metric mtg stud, 5-40 to M3 x 0.50 long	1
