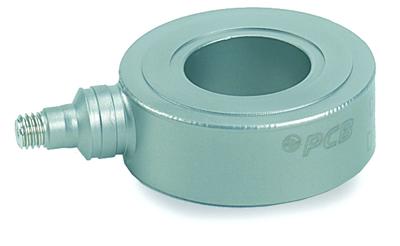

force ring, 40k lb comp., 18 pc/lb, charge output

Force Sensor, Charge Output

Model M214B

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
5 Lead Time for 1-2 is 10 Wks.
  • IP

Force ring, 40k lb comp., 18 pC/lb, charge output

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 55000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Weight: 2 oz (57 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤40000 lb ≤177.92 kN
Maximum Static Force (Compression) 50000 lb 222.4 kN
Upper Frequency Limit 55000 Hz 55000 Hz [2] [3]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance 32 pF 32 pF [4]
Insulation Resistance ≥1E12 ≥1E12
Output Polarity (Compression) Negative Negative
Physical
Preload 8000 lb 35.585 kN
Stiffness 29 lb/µin 5 kN/µm [4]
Size - Diameter 1.34 in 34 mm
Size - Height 0.470 in 11.9 mm
Size - Bolt Diameter 0.625 in 16 mm
Size - ID (Hole Diameter) 0.660 in 16.76 mm
Size - OD (Sensor) 1.340 in 34 mm
Size - Sensing Surface 1.10 in 28 mm
Weight 2 oz 57 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A14 Mounting stud, 1/2-20 x 1.400", BeCu for Models 204C & 214B 1
082B04 Anti-friction washer for Models (M)204C & (M)214B 1
083B04 Pilot bushing for Models 204C & 214B 1

Optional Versions


(M) Metric Mount
Accessories:
Supplied 080A82 Accessory for Force - Torque Division Product 1
Supplied 080A82 Accessory for Force - Torque Division Product 1
Supplied 082B04 Anti-friction washer (for Models 204C and 214B) 1
Supplied 082B04 Anti-friction washer (for Models 204C and 214B) 1
Supplied M081A14 Mounting Stud, M14 x 1.25 x 1.400, BeCu 1
Supplied M081A14 Mounting Stud, M14 x 1.25 x 1.400, BeCu 1
Supplied M083B04 Pilot Bushing 1
Supplied M083B04 Pilot Bushing 1

(W) Water Resistant Cable

English SI
Electrical Connector Molded Integral Cable Molded Integral Cable
Electrical Connection Position Side
