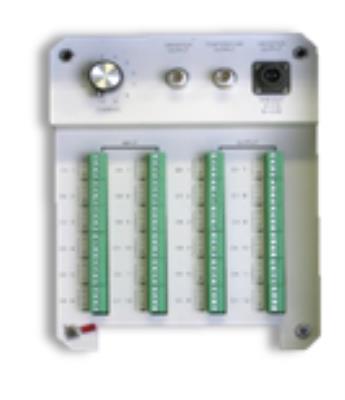

switch box module with switched & continuous outputs, 12 channels, terminal strip input, vib & temp jack, for use with models 691c series

12 CHANNEL SWITCH PANEL MODULE UPGRADE

Model 691C40

$430.00 (USD)

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Switch box module with switched & continuous outputs, 12 channels, terminal strip input, vib & temp jack, for use with Models 691C series

  • Channels: 12

Specification Notes

[1] See PCB Declaration of Conformance PS174 for details.

English: SI:
Performance
Channels 12 12
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Output, Vibration) 2-Pin Mil 2-Pin Mil
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output, vibration, Temperature) Terminal Block Terminal Block
Size - Height 9.1 in 231 mm
Size - Width 7.0 in 178 mm
Size - Depth 2.9 in 74 mm
Weight 1.8 lb 0.8 kg

* All specifications are at room temperature unless otherwise specified.
