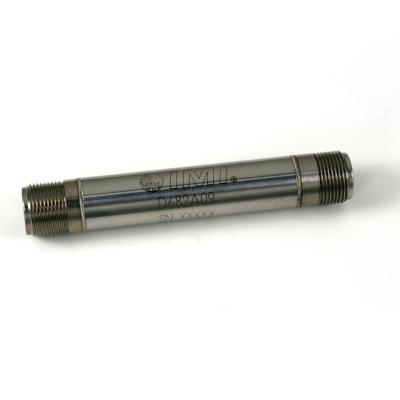

| Performance |
| Input Signal (ICP Accelerometer) |
100 mV/g |
10.2 mV/(m/s²) |
|
| Frequency Response (-3dB ±2dB ) |
600 to 60000 cpm |
10 to 1000 Hz |
|
| Measurement Range |
0.0 to 1.0 in/sec pk |
0.0 to 25.4 mm/s pk |
|
| Output Range |
4 to 20 mA |
4 to 20 mA |
|
| Broadband Resolution |
0.01 in/sec pk |
0.26 mm/s pk |
|
| Environmental |
| Temperature Range |
-40 to 185 °F |
-40 to 85 °C |
|
| Temperature Response (Sensitivity Deviation) |
≤15 % |
≤15 % |
|
| Electrical |
| Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
| Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
| Settling Time (within 2% of value) |
<60 sec |
<60 sec |
|
| Load Resistance |
50 (Vs-20) Ohm |
50 (Vs-20) Ohm |
|
| Physical |
| Size - Height |
4.0 in |
101.6 mm |
|
| Size - Diameter |
0.621 in |
15.8 mm |
|
| Weight |
2.5 oz |
71 gm |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Electrical Connector (#1 ) |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
| Electrical Connection Position (#1 ) |
Sensor End |
Sensor End |
|
| Electrical Connections (#1 ) (Pin A) |
AC IN Pos |
AC IN Pos |
|
| Electrical Connections (#1 ) (Pin B) |
AC IN Neg |
AC IN Neg |
|
| Electrical Connector (#2 ) |
3-Pin MIL-C-5015 |
3-Pin MIL-C-5015 |
|
| Electrical Connection Position (#2 ) |
Output End |
Output End |
|
| Electrical Connections (#2 ) (Pin A) |
4-20 mA Pos (+) |
4-20 mA Pos (+) |
|
| Electrical Connections (#2 ) (Pin B) |
4-20 mA Neg & AC OUT Neg |
4-20 mA Neg & AC OUT Neg |
|
| Electrical Connections (#2 ) (Pin C) |
AC OUT Pos |
AC OUT Pos |
|
| Sealing |
Welded Hermetic |
Welded Hermetic |
|
