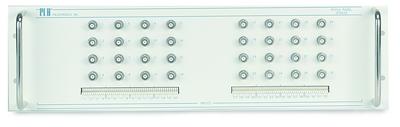

patch panel, 32-channel, rack mount, (32) bnc jack inputs, (32) idc pin inputs, (2) db-50 male outputs


Model 070A33

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Patch panel, 32-channel, rack mount, (32) BNC jack inputs, (32) IDC pin inputs, (2) DB-50 male outputs

    Specification Notes

    [1] 3 pins for each channel
    [2] One jack for each channel
    [3] 2 connector channel 1-16 and 17-32.

    English: SI:
    Channels 32 32
    Form Factor Rack Mount Rack Mount
    Electrical Connector (Input) BNC Jack BNC Jack [2]
    Electrical Connector (Input) IDC Pin IDC Pin [1]
    Electrical Connector (Output) DB-50 Connector DB-50 Connector [3]
    Size - Depth 2.5 in 6.4 cm
    Size - Height 5.5 in 14 cm
    Size - Width 19.0 in 48.3 cm
    Weight 2.91 lb 1.3 kg

    * All specifications are at room temperature unless otherwise specified.
