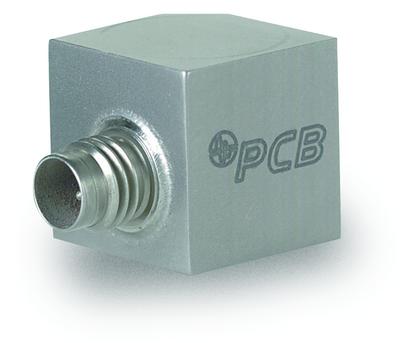

Model : TLD356A14 | Triaxial ICP® Accelerometer

Call for lead time
Add to Cart for Quote

Triaxial ICP® Accel., 100 mV/g, 50 g, 0.5 to 5 kHz, 1/4-28 Side Conn., 10-32 Female, Ti Housing, TEDS ver 1.0

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



010g10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add To Cart
034g10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add To Cart
036g10

4-conductor, silicone jacket cable, 10-ft, 4-pin plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
078G10

4-conductor, twisted shielded, Polyurethane cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 0.5 to 5000 Hz 0.5 to 5000 Hz
Frequency Range (±10 ) 0.3 to 6000 Hz 0.3 to 6000 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) 0.0001 g rms 0.001 m/s² rms [2]
Phase Response (±5 °) 1.0 to 5000 Hz 1.0 to 5000 Hz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +176 °F -54 to +80 °C
Temperature Response See Graph %/°F See Graph %/°F
Base Strain Sensitivity 0.001 g/µε 0.01 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 1.0 to 3.0 sec 1.0 to 3.0 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 40 µg/√Hz 392 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 3 µg/√Hz 29.4 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 1 µg/√Hz 9.8 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 0.5 µg/√Hz 4.9 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1


Optional Versions


( A ) Adhesive Mount
Accessories:
Supplied 080A90 Quick Bonding Gel 1
Supplied 080A109 Petro Wax 1


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLA ) TEDS LMS International - Free Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLB ) TEDS LMS International - Automotive Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
English SI
Temperature Range -65 to +176 -54 to +80
Output Bias Voltage 8.5 to 13.0
