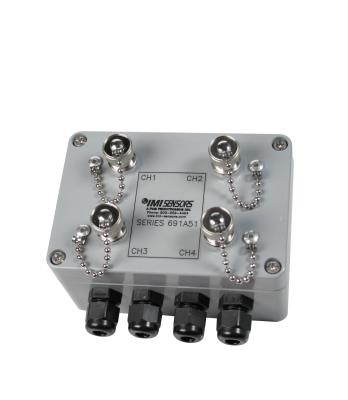

Platinum BNC Termination Box

Model 691A51/04

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
40 Lead Time for 1-10 is 14 Dys.
Lead Time for 11-20 is 3 Wks.
  • CE
  • IP

Platinum Stock Products; BNC termination box, 2.95" x 5.27" x 2.16" NEMA 4X (IP66) fiberglass enc, 4 channels, terminal strip input, BNC jack output, 4 PGME07 cord grips

  • Channels: 4
  • Housing Material: Fiberglass

Specification Notes


[1] See PCB Declaration of Conformance PS174 for details.

English: SI:
Performance
Channels 4 4
Environmental
Temperature Range -15 to 185 °F -26 to 85 °C
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) BNC Jack BNC Jack
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size - Height 4.33 in 110 mm
Size - Width 2.95 in 80 mm
Size - Depth 2.16 in 55 mm
Weight 1.1 lb .50 kg
ROHS Compliant Yes Yes

* All specifications are at room temperature unless otherwise specified.
