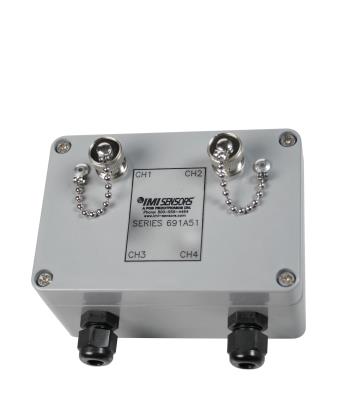

Model : 691A51/02 | Platinum BNC Termination Box

Click for lead times
Lead Time for 11-20 is 3 Wks
platinum stock products; bnc termination box, 2.95 x 5.27 x 2.16 nema 4x (ip66) fiberglass enc, 2 channels, terminal strip input, bnc jack output, 2 pgme07 cord grips
$ 145.00 USD
(Pricing valid in US only!)
57 units in stock

Platinum Stock Products; BNC termination box, 2.95" x 5.27" x 2.16" NEMA 4X (IP66) fiberglass enc, 2 channels, terminal strip input, BNC jack output, 2 PGME07 cord grips

  • Channels: 2
  • Housing Material: Fiberglass
English: SI:
Performance
Channels 2 2
Environmental
Temperature Range -15 to 185 °F -26 to 85 °C
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) BNC Jack BNC Jack
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size - Height 4.33 in 110 mm
Size - Width 2.95 in 80 mm
Size - Depth 2.16 in 55 mm
Weight .96 lb .44 kg
ROHS Compliant Yes Yes
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] See PCB Declaration of Conformance PS174 for details.
