Model : 691C46 | Vibration Switch Box

Click for lead times
$ 1,823.00 USD
(Pricing valid in US only!)

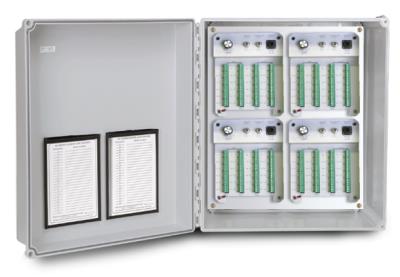

Switch box with switched & continuous outputs, 20" x 16" x 10" NEMA 4X (IP66) fiberglass enclosure, 48 channels, terminal strip input, vib & temp jack and two-pin MIL connector outputs, no connection ports

  • Channels: 48
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)
English: SI:
Performance
Channels 48 48
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Output, Vibration) 2-Pin Mil 2-Pin Mil
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output, Vibration) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 20.6 in 523.2 mm
Size - Width 16.6 in 421.6 mm
Size - Depth 7.9 in 200.6 mm
Weight 27.7 lb 12.6 kg
* All specifications are at room temperature unless otherwise specified
.


Specification Notes



Accessories
Supplied
080A192 4-position terminal block for use with model 691B40 3
