Model: 055BP050BZ

Add to Cart for Quote

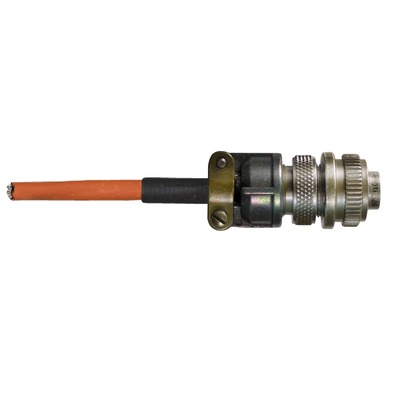

CUSTOM CABLE, 055BP050BZ

Heavy duty two-conductor shielded twisted pair cable with PTFE jacket, 50 ft., high-temp aluminum 2-socket MIL to blunt cut, for use up to 325 deg F (163 deg C)

  • Temperature Range: -65 to 325 °F (-55 to 163 °C)
  • Connection Type: 2-pin
  • Cable Style: Multi Conductor - Shielded

Add this product to my product comparison
Compare selected models ()

 English:SI:
Performance
Number of Conductors22
Coupling Method (sensor side)ThreadedThreaded
Electrical
Capacitance27 pF/ft89 pF/m
Physical
Cable Jacket MaterialPTFEPTFE
Cable Jacket ColorOrangeOrange
Conductor StyleStranded - 19 strands 32 AWGStranded - 19 strands 32 AWG
Conductor MaterialTin Plated CopperTin Plated Copper
Conductor Diameter (20 AWG)0.038 in0.965 mm
Shield Type Over BundleBraid: 85% Minimum CoverageBraid: 85% Minimum Coverage
Shield Material Over BundleTin Plated CopperTin Plated Copper
Bend Radius (minimum)1.9 in48.3 mm
Weight0.52 oz/ft47.97 gm/m
Size - Length50 ft15.24 m

All specifications are at room temperature unless otherwise specified.
