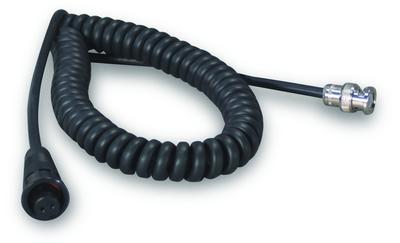

polyurethane coiled cable, 6-ft, 2-socket mil-type conn., straight to bnc plug

Configured Coiled Cable

Model 050BR006AC

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Polyurethane coiled cable, 6-ft, 2-socket MIL-type conn., straight to BNC plug

  • Temperature Range: -22 to 176 °F (-30 to 80 °C)
  • Connection Type: 2-socket
  • Cable Style: Multi Conductor - Shielded

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Connector Model (sensor side) Molded Composite Molded Composite
Connector Style (sensor side) MIL-C-5015 MIL-C-5015
Connection Type (sensor side) 2-socket 2-socket
Coupling Method (sensor side) Threaded Threaded
Connector Style (termination) BNC BNC
Environmental
Temperature Range -22 to 176 °F -30 to 80 °C
Electrical
Capacitance 31 pF/ft 102 pF/m [1]
Physical
Cable Jacket Diameter (±.010 in) 0.21 in 5.33 mm [1]
Cable Jacket Material TPE TPE
Cable Jacket Color Black Black
Conductor Style Stranded - 21 Strands 36 AWG Stranded - 21 Strands 36 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (23 AWG) 0.028 in 0.711 mm [1]
Insulation Material Over Conductor(s) Polypropylene Polypropylene
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Bend Radius 2.1 in 53.3 mm
Weight 0.25 lb 0.11 kg [1]
Size - Length 6 ft 1.829 m

* All specifications are at room temperature unless otherwise specified.
