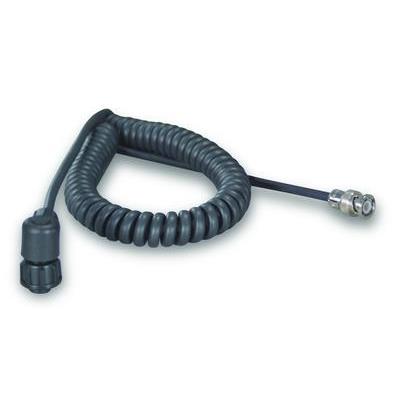

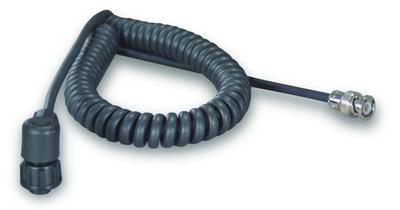

Polyurethane coiled cable, 6-ft, 2-socket MIL-type conn., right angle to BNC plug
- Number of Conductors: 2
- Cable Style: Multi Conductor - Shielded
- Connector Style: MIL-C-5015
- Connector Style: BNC
- Cable Jacket Diameter: (±.010in) 0.21 in (5.33 mm)
Add this product to my product comparison
Compare selected models ()
| | English: | SI: | |
|---|
| Performance |
| Number of Conductors | 2 | 2 | |
| Cable Style | Multi Conductor - Shielded | Multi Conductor - Shielded | |
| Connector Model (sensor side) | Molded Composite | Molded Composite | |
| Connector Style (sensor side) | MIL-C-5015 | MIL-C-5015 | |
| Connection Type (sensor side) | 2-socket | 2-socket | |
| Connector Style | Right Angle | Right Angle | |
| Coupling Method (sensor side) | Threaded | Threaded | |
| Connector Style (termination) | BNC | BNC | |
| Environmental |
| Temperature Range | -22 to 176 °F | -30 to 80 °C | |
| Electrical |
| Capacitance | 31 pF/ft | 102 pF/m | [1] |
| Physical |
| Cable Jacket Diameter (±.010 in) | 0.21 in | 5.33 mm | [1] |
| Cable Jacket Material | TPE | TPE | |
| Cable Jacket Color | Black | Black | |
| Conductor Style | Stranded - 21 Strands 36 AWG | Stranded - 21 Strands 36 AWG | |
| Conductor Material | Tin Plated Copper | Tin Plated Copper | |
| Conductor Diameter (23 AWG) | 0.028 in | 0.711 mm | [1] |
| Insulation Material Over Conductor(s) | Polypropylene | Polypropylene | |
| Shield Type Over Conductor(s) | Braid: 90% Minimum Coverage | Braid: 90% Minimum Coverage | |
| Shield Material Over Conductor(s) | Tinned Copper | Tinned Copper | |
| Bend Radius | 2.1 in | 53.3 mm | |
| Weight | 0.25 lb | 0.11 kg | [1] |
| Size - Length | 6 ft | 1.829 m | |
All specifications are at room temperature unless otherwise specified.
