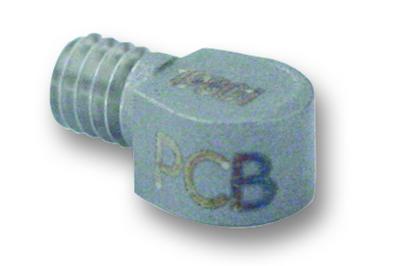

Model 357A19 Product Type: Accelerometer, Vibration Sensor Miniature, teardrop-style, Charge output accelerometer, 0.3 pC/g 3-56 connector, titanium housing View Spec Sheet (PDF) View photo and drawing .
PERFORMANCE ENGLISH SI Sensitivity(± 20 %) 0.35 pC/g 0.036 pC/(m/s²) Measurement Range ± 1000 g pk ± 9800 m/s² pk Frequency Range(+5 %) 12 kHz 12 kHz [2] Frequency Range(+10 %) 20 kHz 20 kHz [2] Resonant Frequency ≥ 70 kHz ≥ 70 kHz Non-Linearity ≤ 1 % ≤ 1 % [3] Transverse Sensitivity ≤ 5 % ≤ 5 % ENVIRONMENTAL Overload Limit(Shock) ± 10,000 g pk ± 98,100 m/s² pk Temperature Response See Graph See Graph Temperature Response See Graph See Graph [1] Temperature Response See Graph See Graph ELECTRICAL Capacitance 140 pF 140 pF [1] Insulation Resistance(at 70° F [21°C]) >1010 ohm >1010 ohm Output Polarity Negative Negative PHYSICAL Sensing Element Ceramic Ceramic Sensing Geometry Shear Shear Housing Material Titanium Titanium Sealing Epoxy Epoxy Size (Height x Diameter x Width) 0.11 in x 0.16 in x 0.27 in 2.8 mm x 4.1 mm x 6.9 mm Weight 0.007 oz 0.20 gm [1] Electrical Connector 3-56 Coaxial Jack 3-56 Coaxial Jack Electrical Connection Position Side Side SUPPLIED ACCESSORIES: Model 030A10 Coax Cable, 10 ft (3 m), 3-56 plug to 10-32 plug. (1) Model 039A29 Removal Tool (1) Model 080A109 Petro Wax (1) Model ACS-1 NIST traceable frequency response (10 Hz to upper 5% point). (1) OPTIONAL VERSIONS P- Positive Output Polarity Output Polarity Positive All specifications are at room temperature unless otherwise specified. NOTES: [1] Typical. [2] Low frequency response is determined by external signal conditioning electronics. [3] Zero-based, least-squares, straight line method.
Download Drawing 35428-NR.pdf
