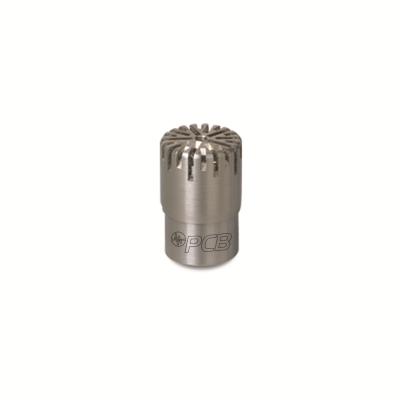

Model : 377A14 | Precision Condenser Microphone

Click for lead times
Lead Time for 1-5 is 6 Wks
Lead Time for 0-0 is 0 Wks
$ 850.00 USD
(Pricing valid in US only!)

1/4 inch Pressure Mic Prepolarized, side vent

  • Nominal Microphone Diameter: 1/4"
  • Frequency Response Characteristic: Pressure
  • Frequency Range: (±2dB)4 to 70000 Hz (4 to 70000 Hz)
  • Inherent Noise: <35 dB(A) re 20 µPa
  • Dynamic Range: (3% Distortion Limit)174 dB re 20 µPa

RELATED PRODUCTS



079A07

Windscreen (for 1/4-inch microphones)



Add to Cart for Quote
Add To Cart
079A18

Clamp-on flexible extension arm



Add to Cart for Quote
Add To Cart
079B10

Microphone holder (for 1/4-inch microphones)



Add to Cart for Quote
Add To Cart
079B32

1/4 inch array holder (for 1/2 inch diameter rod)



Add to Cart for Quote
Add To Cart
079C20

Nose cone (for 1/4 inch microphone)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Nominal Microphone Diameter 1/4" 1/4"
Frequency Response Characteristic Pressure Pressure
Open Circuit Sensitivity (±3 dB) -60 dB re 1 V/Pa -60 dB re 1 V/Pa [2]
Open Circuit Sensitivity 1.0 mV/Pa 1.0 mV/Pa [2]
Frequency Range (±2 dB) 4 to 70000 Hz 4 to 70000 Hz
Lower Limiting Frequency (-3 dB) 0.25 to 3.0 Hz 0.25 to 3 Hz
Resonant Frequency (90° Phase Shift) 65000 Hz 65000 Hz [1]
Inherent Noise <35 dB(A) re 20 µPa <35 dB(A) re 20 µPa
Dynamic Range(3% Distortion Limit) 174 dB re 20 µPa 174 dB re 20 µPa [1]
Environmental
Temperature Range (Operating) -40 to +248 °F -40 to +120 °C
Temperature Coefficient of Sensitivity (+14 to +122°F (-10 to +50°C)) 0.004 dB/°F 0.007 dB/°C [1] [2]
Static Pressure Coefficient -0.003 dB/kPa -0.003 dB/kPa [1] [2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing) ±0.0012 dB/%RH ±0.0012 dB/%RH [2]
Influence of Axial Vibration (0.1g (1 m/s²)) 66 dB re 20 µPa 66 dB re 20 µPa [1]
Electrical
Capacitance (Polarized) 5 pF 5 pF [1]
Polarization Voltage 0 V 0 V [3]
Physical
Housing Material Stainless Alloy Stainless Alloy
Venting Side Side
Mounting Thread 0.2244 - 60 UNS 5.7 mm - 60 UNS
Mounting Thread 0.25 - 60 UNS 6.35 mm - 60 UNS
Size - Diameter (with grid) 0.28 in 7.0 mm
Size - Diameter (without grid) 0.25 in 6.4 mm
Size - Height (with grid) 0.41 in 10.5 mm
Size - Height (without grid) 0.36 in 9.1 mm
Weight 0.06 oz 1.8 gm [1]
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Typical.
[2] re 250 Hz
[1] Typical.
[2] re 250 Hz
[1] Typical.
[3] Prepolarized
[1] Typical.
[4] See PCB Declaration of Conformance PS167 for details.


Accessories


Supplied
ACS-20 Calibration of precision condenser microphones 1
